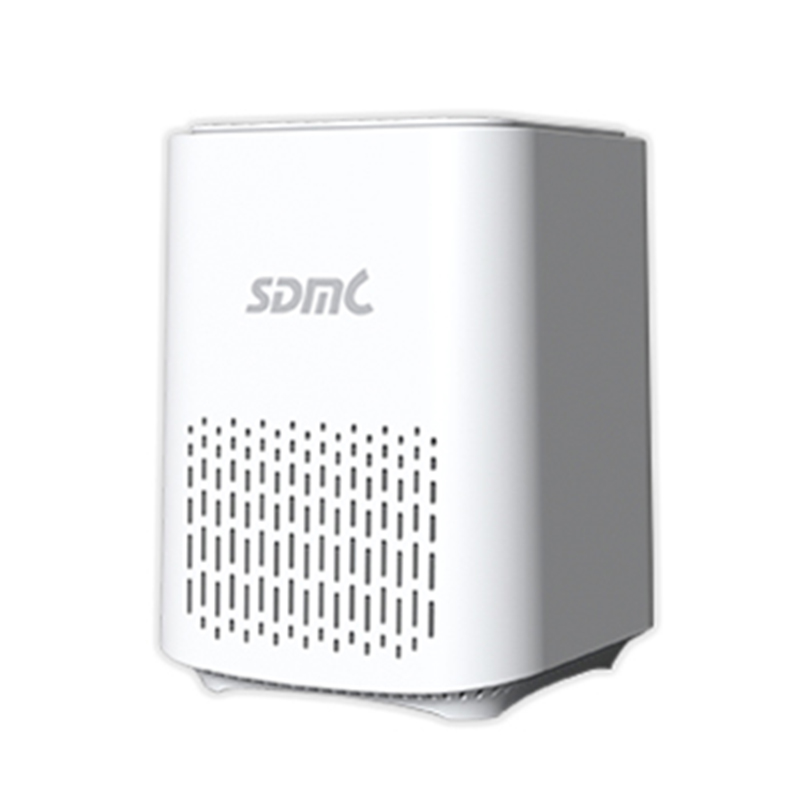

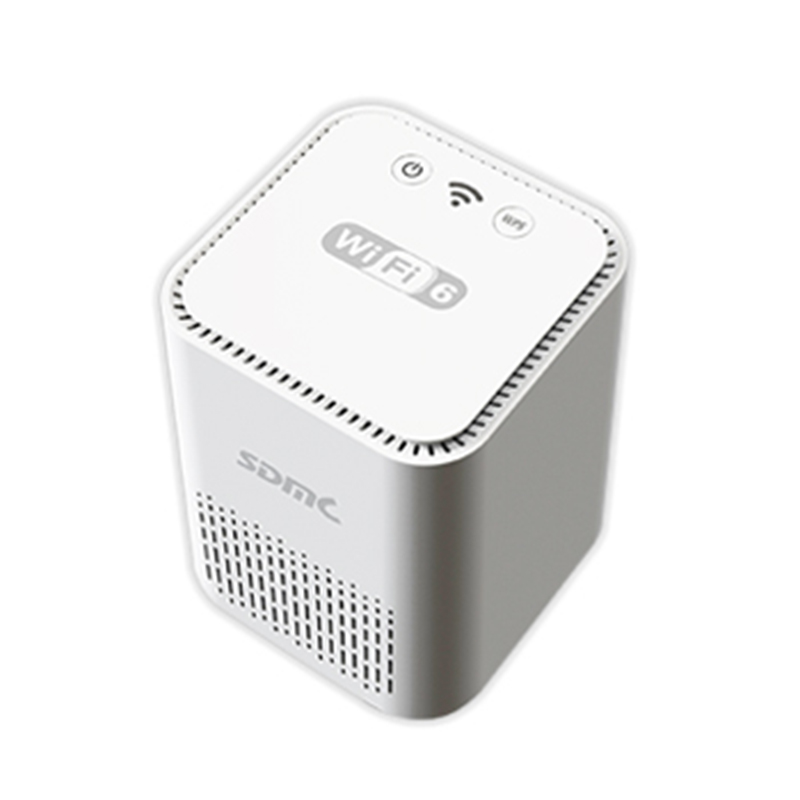

Dual Band Smart WiFi Mesh 802.11ax


Keywords :

WiFi Mesh 802.11ax / Dual Band WiFi 6 Mesh / Smart Wi-Fi Extender


  • Hits : 10
  • Company : Shenzhen SDMC Technology Co.,Ltd
  • Telephone :
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • Full Compliant with IEEE and WFA 802.11ax
  • Full Compliant with Wi-Fi Alliance Multi-AP EasyMesh
  • Dual-band OFDMA allowing for a higher density of simultaneous users
  • Support MU-MIMO ,simultaneous connection of multiple devices
  • Use mobile App management to easily set up your Wi-Fi and manage the network

Product Details


Common Features


● Fully Compliant with IEEE and WFA 802.11ax.

● Fully Compliant with Wi-Fi Alliance Multi-AP EasyMesh.

 ● EasyMesh is a scalable system, whole-home coverage, and a consistently strong signal, without limited coverage or disconnection.

● Dual-band OFDMA allowing for a higher density of simultaneous users.

● Support MU-MIMO, simultaneous connection of multiple devices.

● Support WPA3, and the latest and most advanced Wi-Fi security protocol.

● Support WPS button, you can access your home network more safely and easily.

● Can using mobile App management to easily set up your Wi-Fi and manage the network.

● Support TR069 cloud remote management.


Basic parameters System


Chipset: BCM6752,BCM43684

CPU: ARM Tri-core Cortex-A7 1.5GHz

DRAM: 512MB

Flash: 512MB

LAN Ports2x10/100/1000BASE-T,WAN/LAN Auto-switch

Wi-Fi

Standard:
   Wi-Fi 2.4GHz/5.0GHz 802.11a/b/g/n/ac/ax

Antenna:
    6xHigh-Gain Antenna MU-MIMO Wi-Fi

Data Throughput:
 2.4GHz 2x2 up to 573.6 Mbps, 40/20MHz 1024/256-QAM
 5GHz 4x4 up to 2402 Mbps, 160/80/40/20 MHz 1024-QAM

Connectivity

RJ45 x2,Reset key,DC-in

Button: Power ON/OFF; WPS

2 RGB Multicolor LEDs: Power (backlit power button);

 Wi-Fi Status (2.4GHz and 5GHz)
